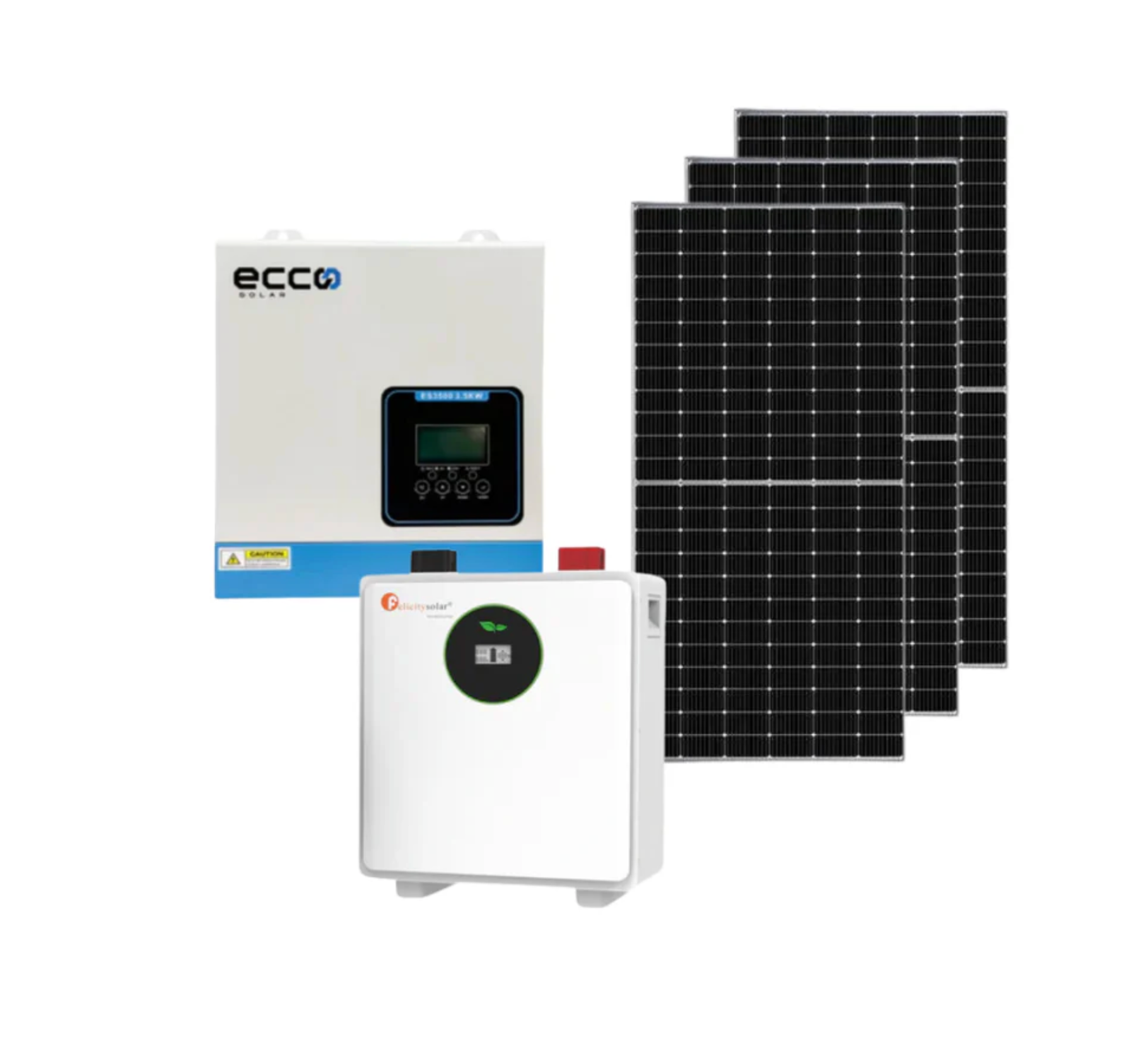

3.5KVA Ecco 24V MPPT Hybrid Inverter + 24V Felicity 25.6kWh Battery + 3x 460W Solar Panels Combo

This Ecco hybrid solar combo kit is a practical 24V solution for backup power and small solar installations. It combines a 3.5kVA pure sine wave hybrid inverter with a 2.56kWh Felicity 100AH LiFePO₄ 25.6V (Low-Voltage) Battery Pack and three high-watt mono solar panels, giving you a complete base system that can be monitored with an optional WiFi dongle.

Combo Includes

1x Ecco LR24100 25.6V 100Ah 2.56kWh lithium battery with BMS

1x Felicitysolar 25.6V Low-Voltage LiFePO₄ Battery Pack

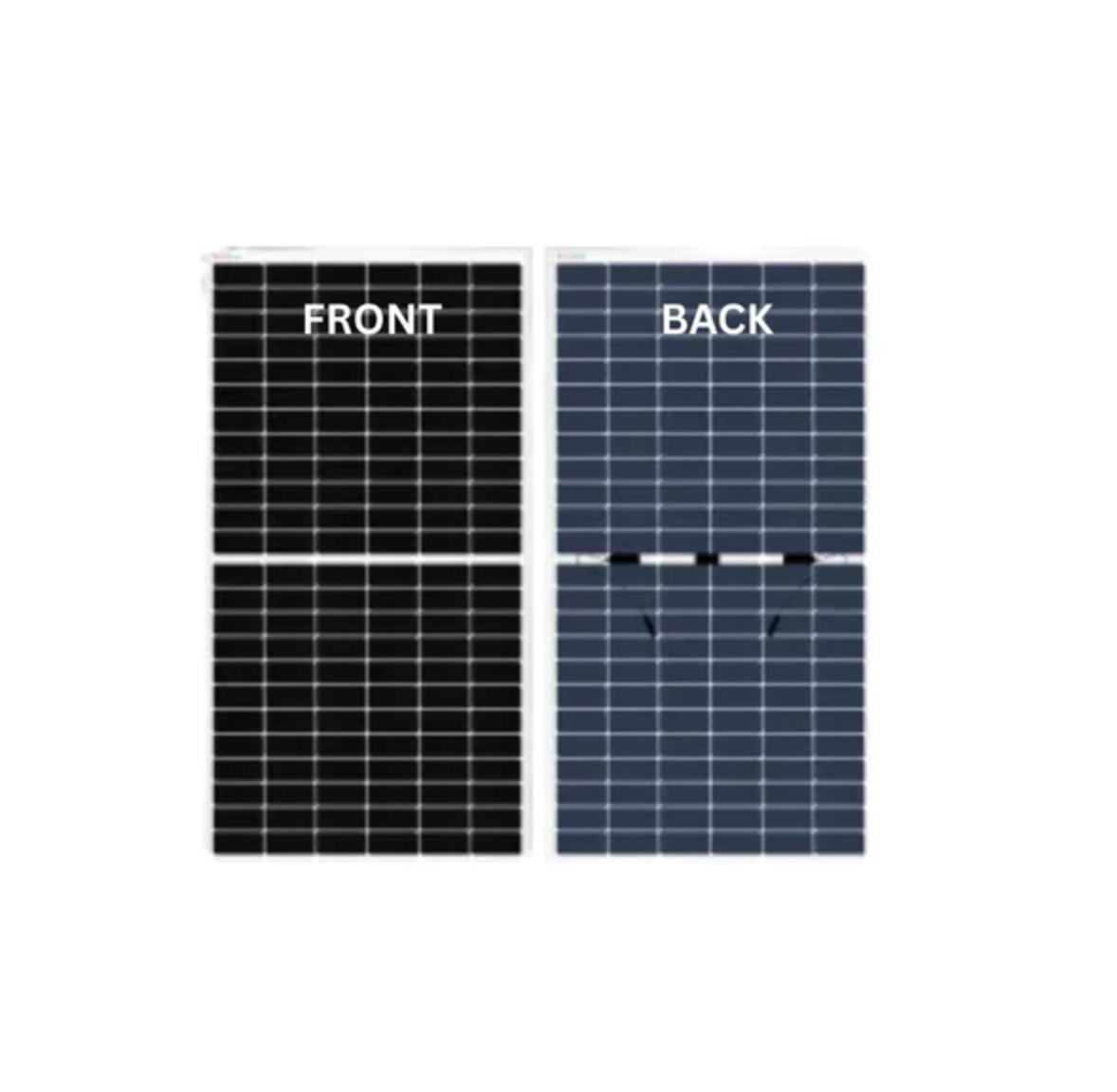

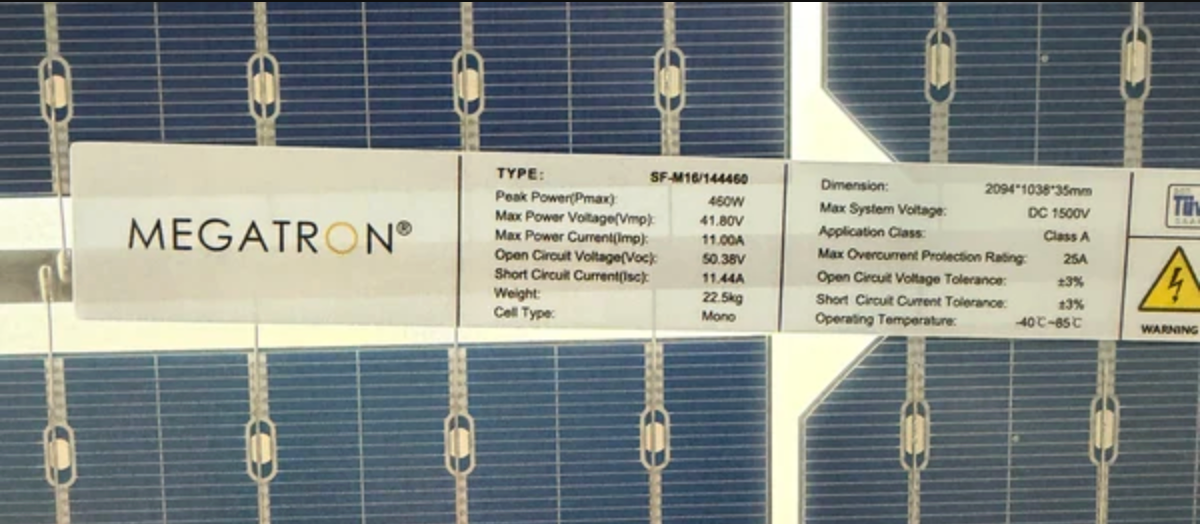

3x 460W Solar mono panels

Optional add-on: WiFi dongle available

Hybrid Inverter Specifications (Ecco ES3500)

Inverter Mode

Rated power: 3500VA / 3500W

Nominal voltage: 24V

AC Charger Mode

AC input: 230VAC, 50/60Hz

Max charge current: 60A

Max charger current (AC + PV): 100A

AC output: 230VAC

Solar Charger Mode

Max PV array power: 4000W

Minimum solar voltage: 30VDC

Max solar voltage (Voc): 500VDC

Max MPPT charge current: 100A

Nominal Energy: 2.56kWh

Nominal Voltage: 25.6V

Operating Voltage: 22.4V – 28.8V

Max Continuous Charge / Discharge Current: 100A

Peak Charge / Discharge Current: 200A for 15 seconds

Max Charge / Discharge Power: 2,500W

Parallel Expansion: Up to 15 units

Maximum Storage Capacity: 38.4kWh

Product Weight: 23kg

Package Weight: 27kg

Product Dimensions: 325 × 400 × 180mm

Package Dimensions: 462 × 417 × 252mm

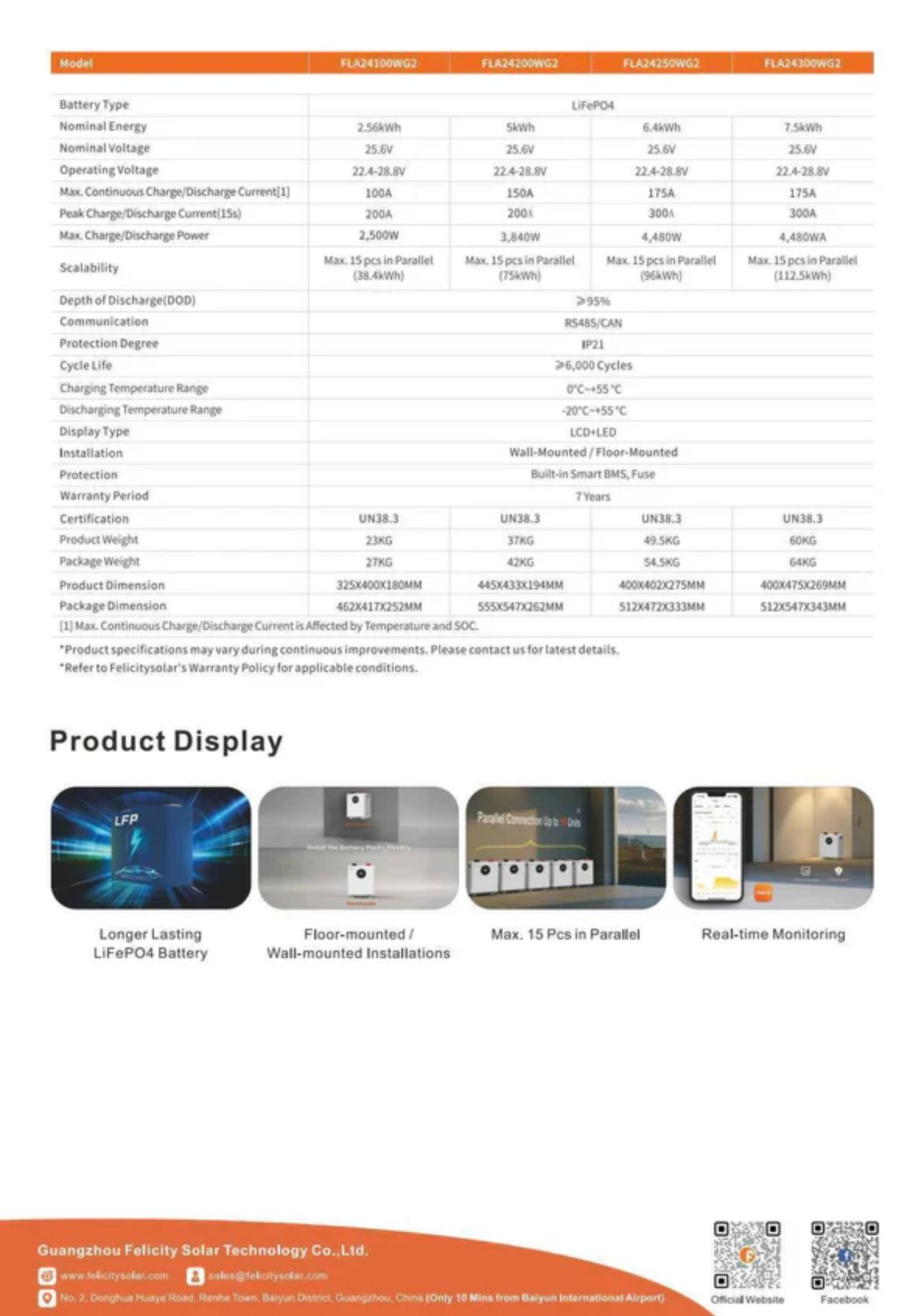

General Specifications :

Battery Type: LiFePO₄

Nominal Voltage: 25.6V

Operating Voltage Range: 22.4V – 28.8V

Depth of Discharge: ≥95%

Communication: RS485 / CAN

Protection Degree: IP21

Cycle Life: ≥6,000 cycles

Charging Temperature Range: 0°C to 55°C

Discharging Temperature Range: -20°C to 55°C

Display Type: LCD + LED

Installation: Wall-mounted or floor-mounted

Protection: Built-in smart BMS and fuse

Certification: UN38.3

Warranty

Battery warranty: 7 years

Inverter warranty: 5-year repair warranty

Solar panel warranty: 12-year product workmanship warranty

Delivery Note for Panels

Please note courier for solar panels are at your own risk

Warranty and Installation Requirements

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour

A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system

The installation must be compliant with SANS 10142 and all its parts

Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman or master electrician installing the unit, can be rejected and will render the warranty claim null and void
