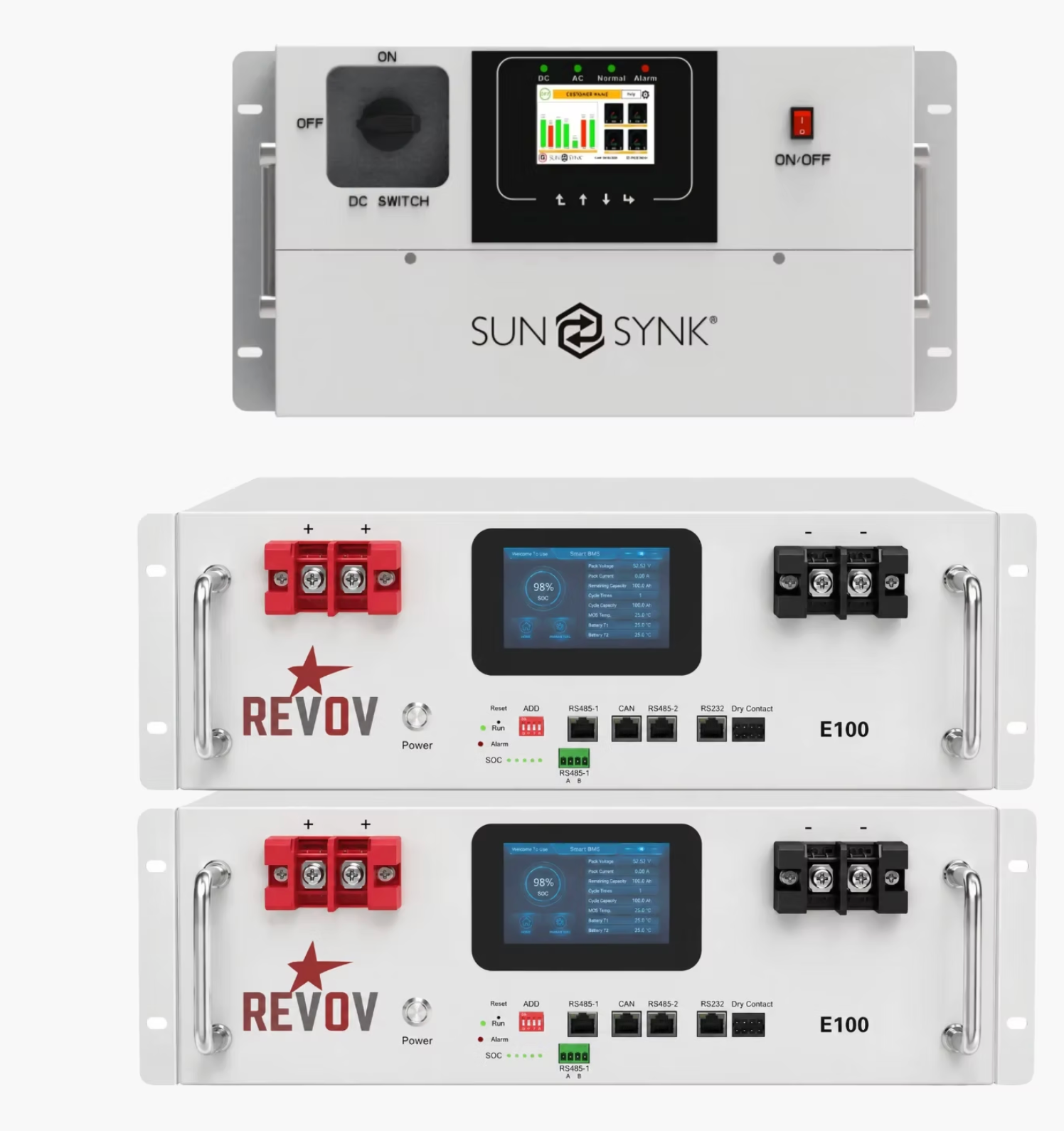

10.24kWh REVOV Battery Backup System with 6kW Hybrid Inverter

Product Overview

The 10.24kWh REVOV Battery Backup System combines two lithium iron phosphate (LiFePO₄) batteries with a 6kW hybrid inverter to provide reliable backup power for homes, offices, and small businesses. Designed for backup and energy storage applications, the system offers intelligent power management and supports integration with compatible solar installations.

With a total nominal battery capacity of 10.24kWh and a 6kW inverter, this system can power essential loads during power interruptions while providing flexible energy management options.

Key Features

• 10.24kWh Total Battery Storage Capacity

• 6kW Hybrid Inverter Included

• LiFePO₄ Battery Technology

• Solar-Ready System

• Dual MPPT Solar Inputs

• Intelligent Battery Communication

• Automatic Backup Functionality

• Suitable for Residential and Commercial Applications

• Expandable Battery Storage Capability

• Professional Installation Required

Package Contents

• 2 x REVOV E100 5.12kWh LiFePO₄ Batteries

• 1 x 6kW Hybrid Inverter

Battery Specifications

• Total Nominal Storage Capacity: 10.24kWh

• Total Battery Capacity: 200Ah

• Nominal Voltage: 51.2V

• Battery Chemistry: LiFePO₄

• Communication: CAN Bus / RS485

• Rack-Mount Design

Inverter Specifications

• Rated Output Power: 6000W

• Maximum AC Output: 6600W

• Battery Voltage Range: 40V–60V

• Maximum Charge Current: 135A

• Maximum Discharge Current: 135A

• Maximum Continuous AC Passthrough: 40A

• Dual MPPT Solar Inputs

Solar Compatibility

The hybrid inverter supports connection to compatible solar panels and can manage energy from solar, battery, and grid sources.

• Maximum PV Input Power: 7800W

• MPPT Trackers: 2

• Solar-Ready Design

Applications

Suitable for:

• Residential Backup Power

• Small Business Backup Systems
