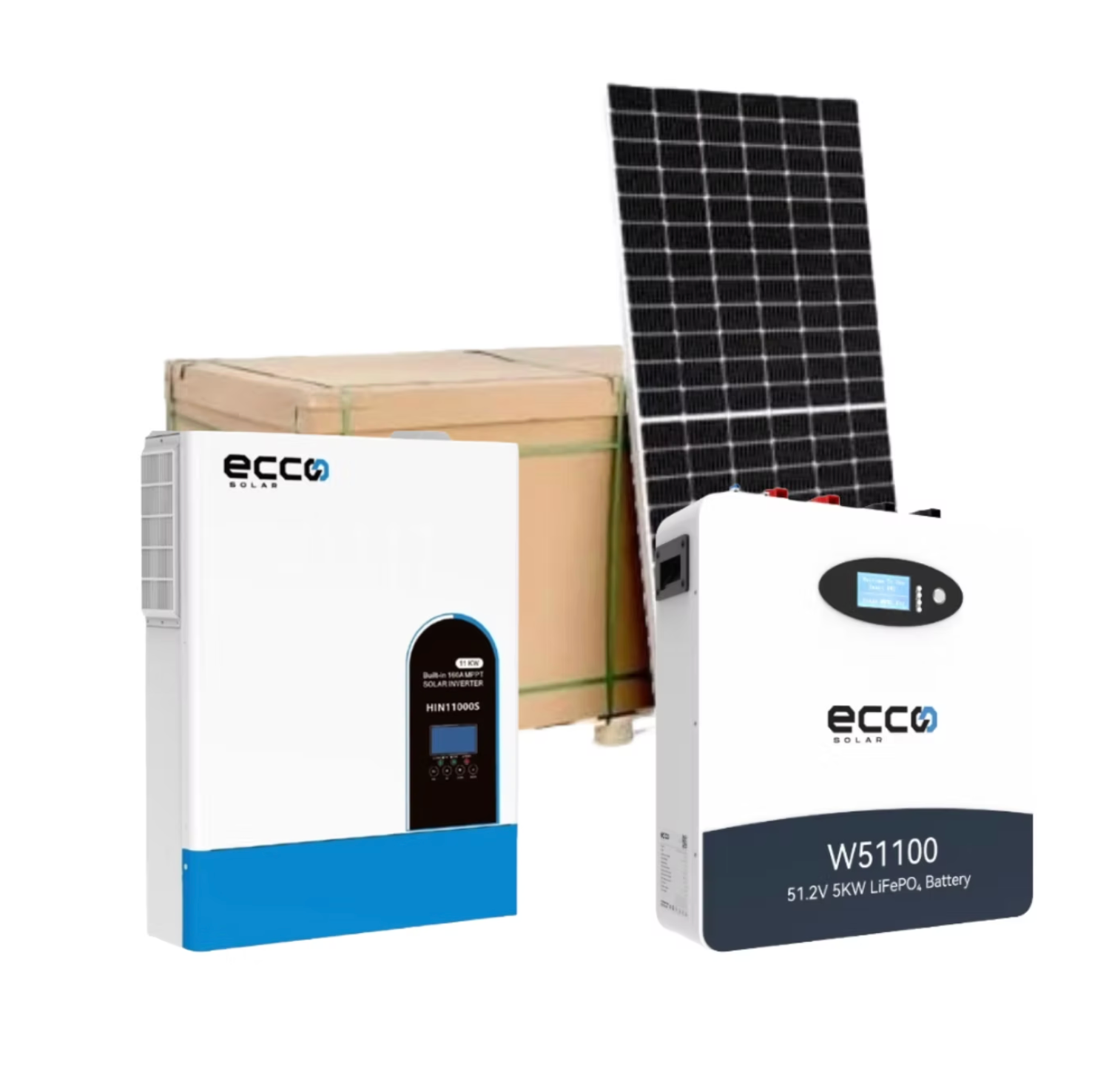

11kva Ecco Hybrid Inverter

The Ecco 11kVA Solar Kit combines a high-capacity hybrid inverter, lithium battery storage, and solar panels in a complete energy solution suitable for residential and small commercial applications. Designed to support solar generation, battery backup, and utility power integration, this system provides flexible energy management for daily power requirements.

This Combo Consists of the Following:

• 1 x Ecco 11kVA Hybrid Inverter

• 1 x Ecco 5.12kWh Lithium Battery

• 8 x 580W Solar Panels

• 6 x 3.5m Mounting Rails

• 20m x 6mm Red Solar Cable

• 20m x 6mm Black Solar Cable

• 16 x Solar Panel Roof Hooks

• 14 x PV Mid Clamps

• 4 x PV End Clamps

• 1 x Combiner Box (1 In / 1 Out)

• 2 x Battery Cable Sets

• 1 x Latch Fuse Holder

• 2 x 125A Fuses

• 4 x Rail Extensions

• 1 x AC Combiner Box

Ecco 11kVA / 11000W Hybrid Inverter

The Ecco HIN11000S Hybrid Inverter is designed to support solar panels, battery storage, and utility power within a single platform. Featuring dual MPPT technology and pure sine wave output, it is suitable for a wide range of residential and commercial energy applications.

Key Features

• 11kVA / 11kW Output Capacity

• Dual MPPT Solar Charge Controllers

• Pure Sine Wave Output

• Power Factor 1.0

• Maximum PV Input Voltage: 500VDC

• Built-In 160A MPPT Charger

• Operates With or Without Battery Storage

• Lithium Battery Activation via PV or Utility

• LiFePO4 Battery Communication via RS485

• Optional WiFi Monitoring

• Multiple Output Priority Modes

• Detachable Dust Cover for Harsh Environments

• Battery Equalization Function

Inverter Specifications

General

• Model: HIN11000S

• Rated Capacity: 11kVA / 11kW

• Maximum PV Input Power: 11kW

• Parallel Capability: No
